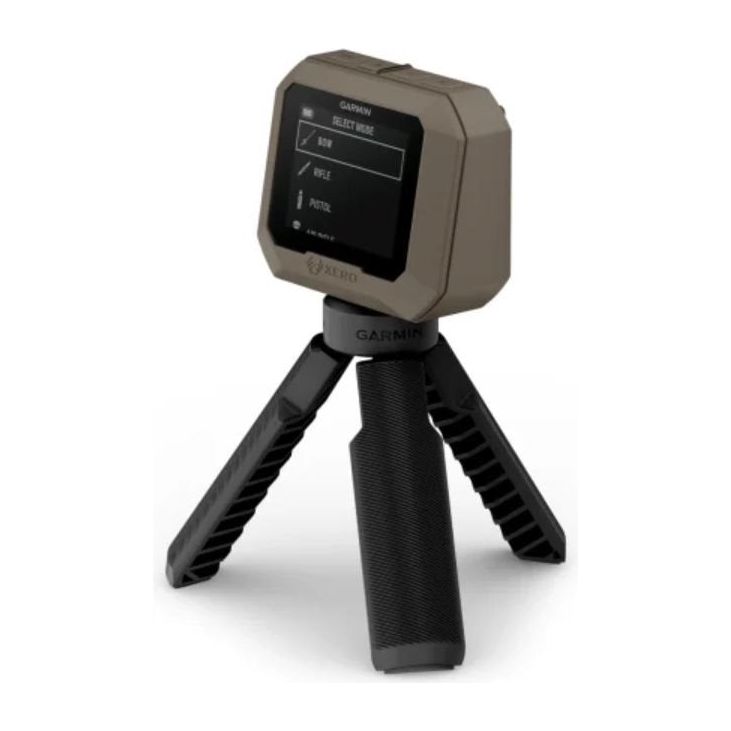

GARMIN XERO C1 PRO CHRONOGRAPH

CAPTURE PRECISION. EXECUTE PERFECTION.

The most essential data for ballistics calculations is projectile speed. A chronograph is the best tool for the job. Whether you’re handloading for the range or building arrows for the hunt, the Xero C1 Pro chronograph provides the speed data you need to hone your craft.

• Measure projectile speeds from 100 fps to 5,000 fps.
• The button-operated design is simple to use.
• Pair with the ShotView™ smartphone app to track your shots, measure deviation and more.
• It’s built to endure the elements with an IPX7 water-resistant rating.
• The compact design fits in your back pocket and is easy to set up.
• Battery life for up to 2,000 shots or up to 6 hours gives you plenty of time at the range.

RELIABLE PERFORMANCE
The chronograph will reliably pick up your shots, thanks to the sensitive and accurate sensor.

VERSATILE PERFORMANCE
The device can measure projectile speeds from 100 fps to 5,000 fps for bullets, arrows, slugs, birdshot, airsoft BBs, pellets and paintballs.

EASY TO OPERATE
Indoor and outdoor operation is simple, thanks to the backlit display and button-operated design.

PURPOSE-BUILT APP
Keep track of your shots, measure deviation and more when paired with the ShotView app on your compatible smartphone.

SIMPLE SETUP
Turn it on. Set it up. Point it in the direction of fire, and shoot.

RECHARGEABLE BATTERY
With battery life for up to 2,000 shots or up to 6 hours, there’s no rush. Take your time at the range while you experiment and fine-tune your setup.

SUPPRESSOR SUPPORT
Since the unit isn’t triggered by muzzle blast, it picks up shots from suppressed firearms and firearms with muzzle brakes or compensators.

BUILT TO ENDURE
Designed to last, thanks to an IPX7 water-resistant rating.

ACCURATE BY DESIGN
There’s no need to attach anything to your firearm, which means it won’t affect your zero or barrel harmonics.

General
DIMENSION    3.03" (77 mm) x 2.38" (60.5 mm) x 1.36" (34.44 mm) without tripod
5.1" (130 mm) x 4.5" (115 mm) x 5.5" (138.5 mm) with tripod
Weight
105.6 g without tripod
161 g with tripod

WATER RATING    IPX7
DISPLAY TYPE    sunlight-visible, transflective, monochrome
DISPLAY SIZE    1.3" x 1.7" (33 mm x 44 mm), 2.2" diagonal (55 mm)
DISPLAY RESOLUTION    240 x 320 pixels
BATTERY TYPE    internal rechargeable lithium-ion battery; nonreplaceable
BATTERY LIFE    2,000 shots or up to 6 hours
OPERATING RANGE    -10° C to 55° C (14° F to 131° F)
MEMORY/HISTORY    50 sessions at max 100 shots per round before a ShotView™ app sync is required to save data to phone
INTERFACE:    USB-C

Daily Smart Features
CONNECTIVITY    BLUETOOTH®  technology
MOBILE APP    ShotView™ app

Chronograph Features
TRACKS RIFLES UP TO 5000 FPS
TRACKS BOWS AND CROSSBOWS UP TO 600 FPS
TRACK PISTOLS UP TO 2000 FPS
TRACKS AIR RIFLES UP TO 2000 FPS
TRACKS AIRSOFT UP TO 1000 FPS
TRACK OTHER PROJECTILES UP TO 5000 FPS
CALCULATES KINETIC ENERGY AT MUZZLE
CALCULATES POWER FACTOR
CALCULATES EXTREME SPREAD
CALCULATES STANDARD DEVIATION
CALCULATES STRING AVERAGE
DELETE SHOTS IN STRING    device or app
DECIMAL PRECISION
ADD INDIVIDUAL SHOT NOTES    yes (on ShotView™ app)
ADD SESSION NOTES    yes (on ShotView™ app)
MARK SHOTS WITH CLEAN/COLD BORE    yes (on ShotView™ app)
EXCLUDE SHOT FROM AVERAGE AND STANDARD DEV CALCULATIONS    yes (on ShotView™ app)
TRIPOD COMPATIBILITY    yes (¼-20 thread compatible)
