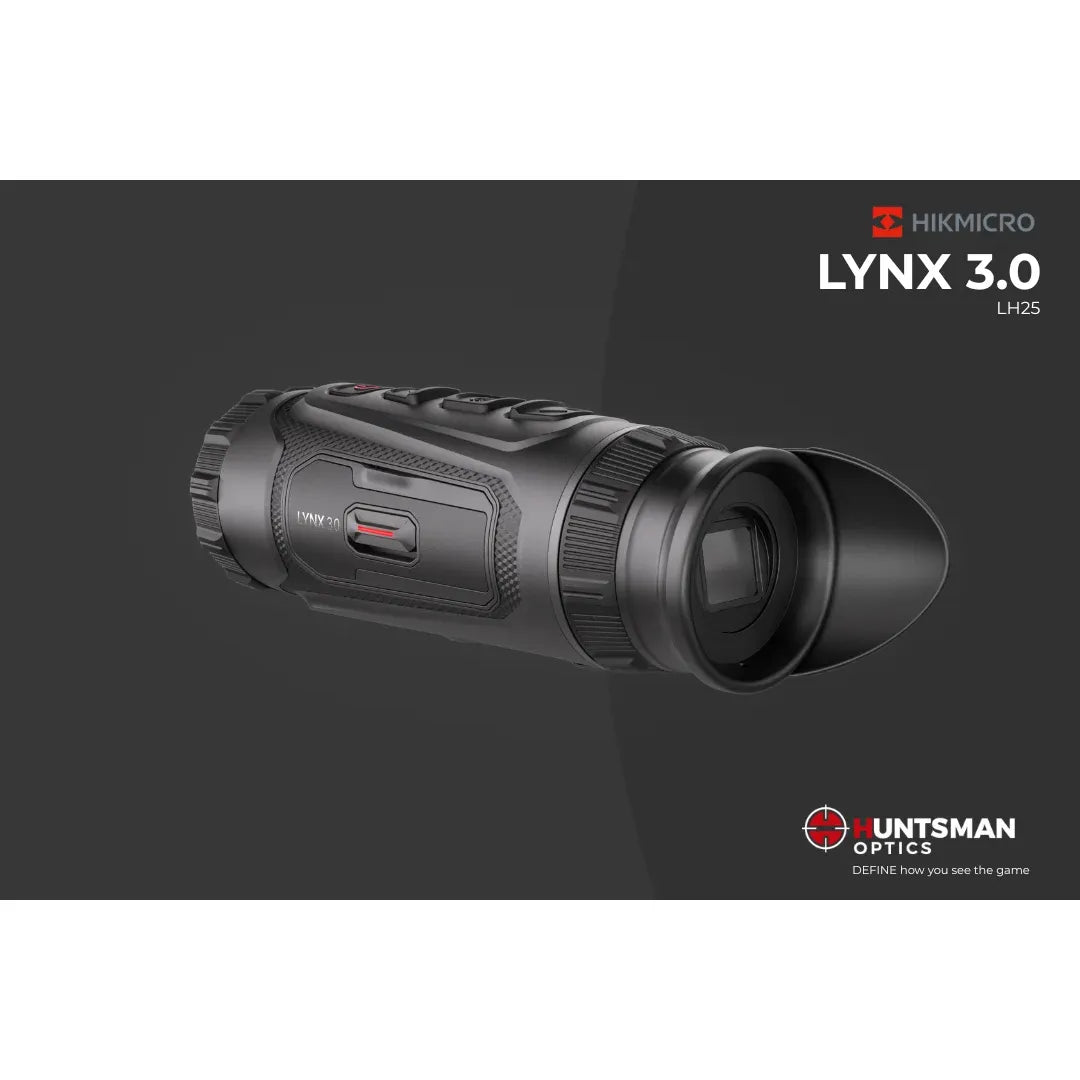

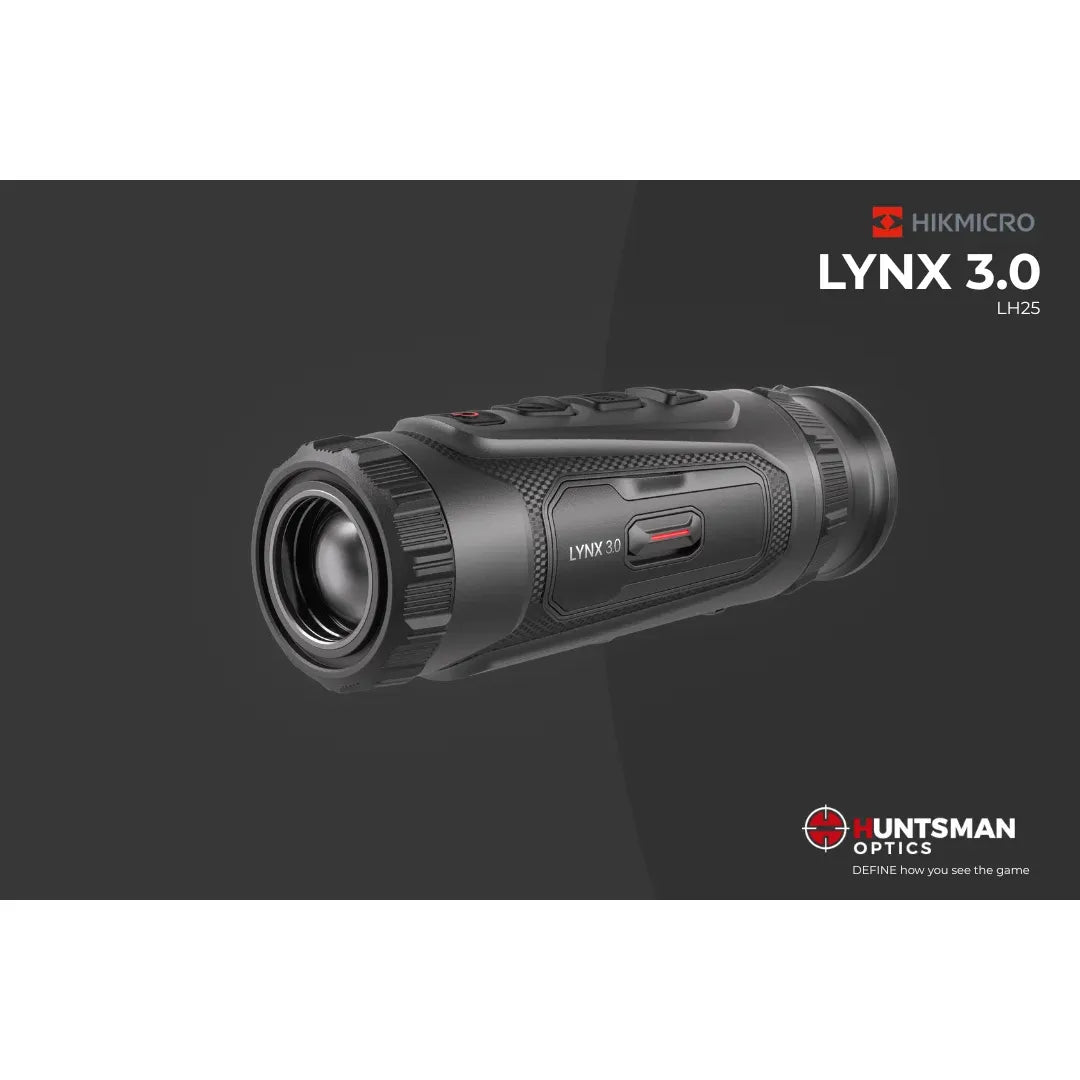

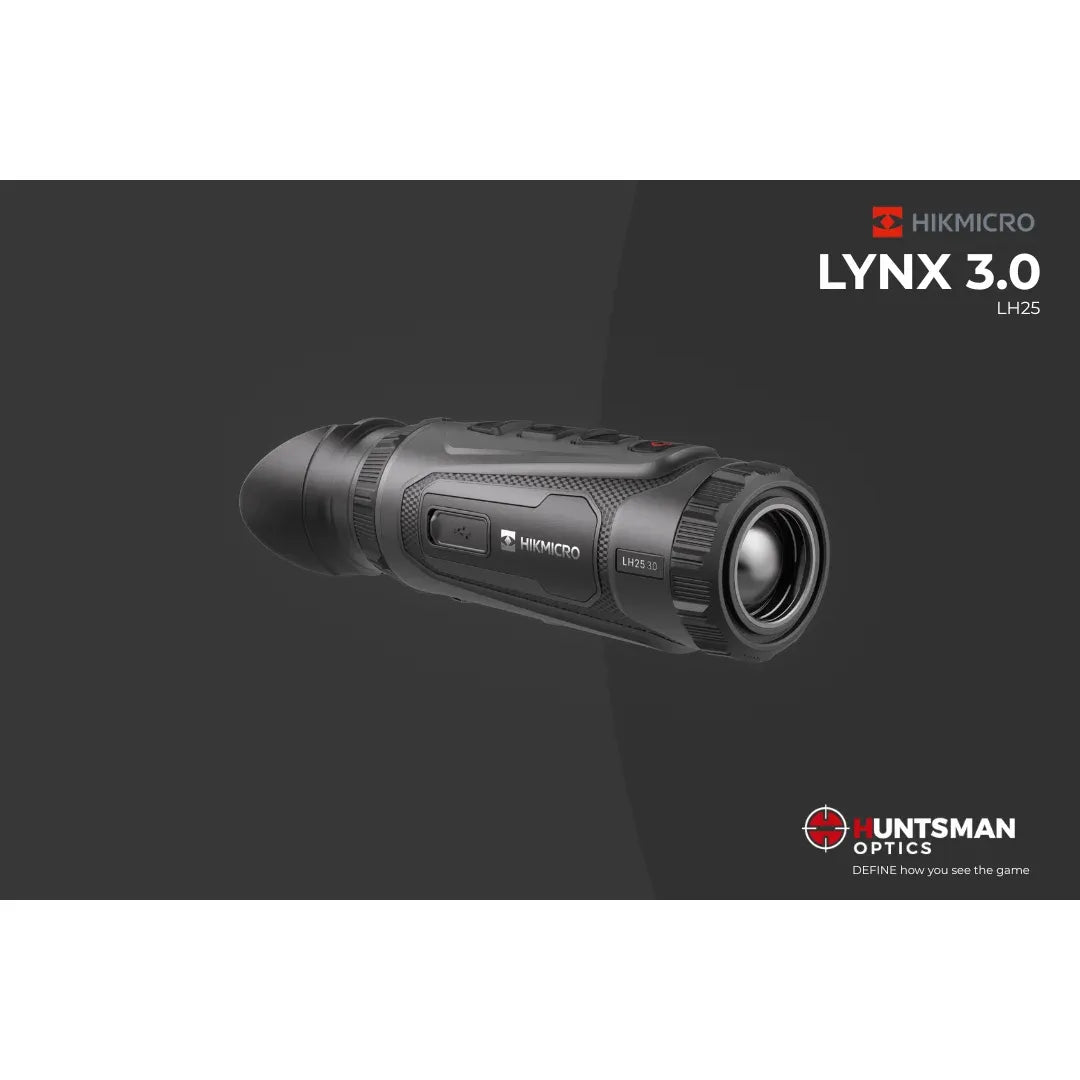

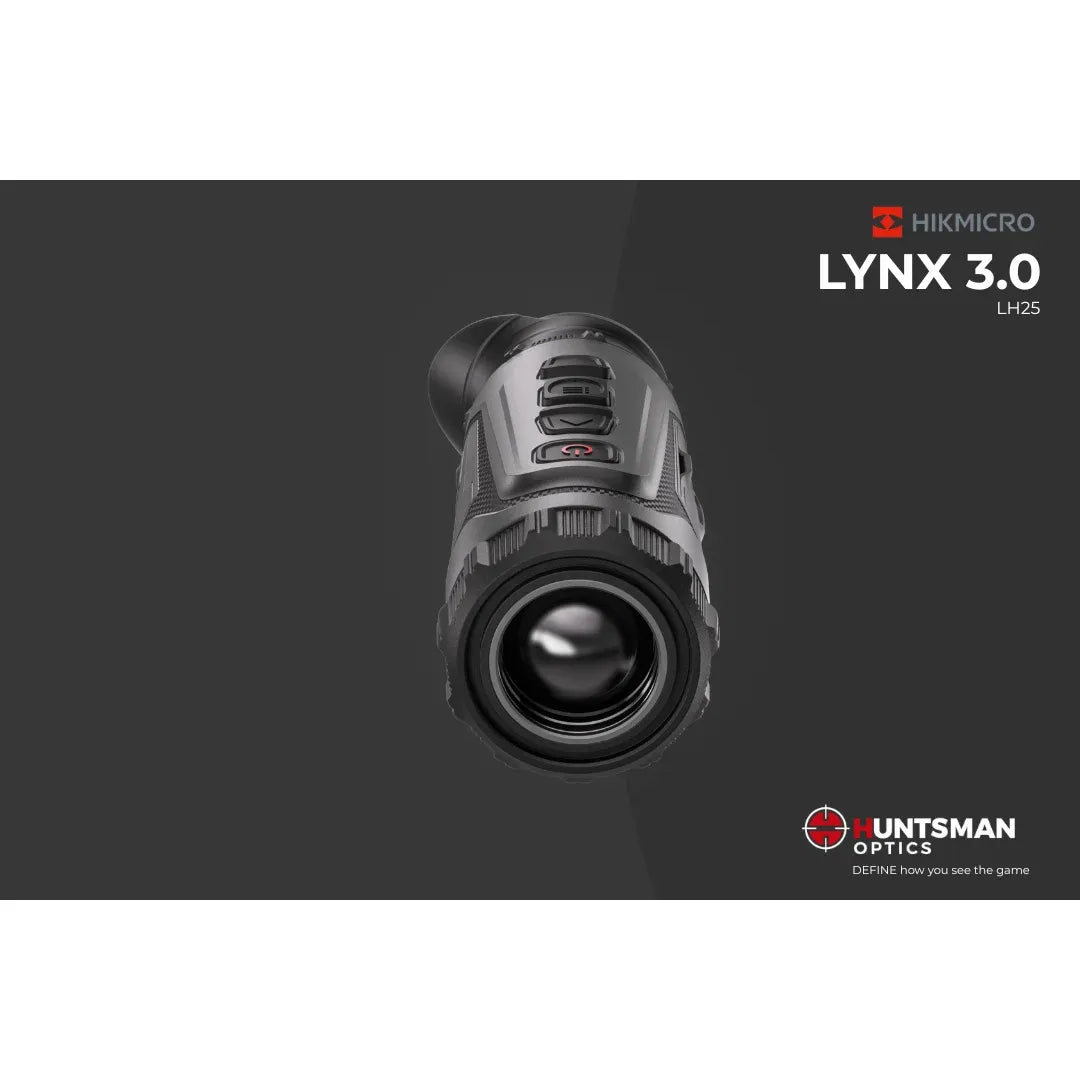

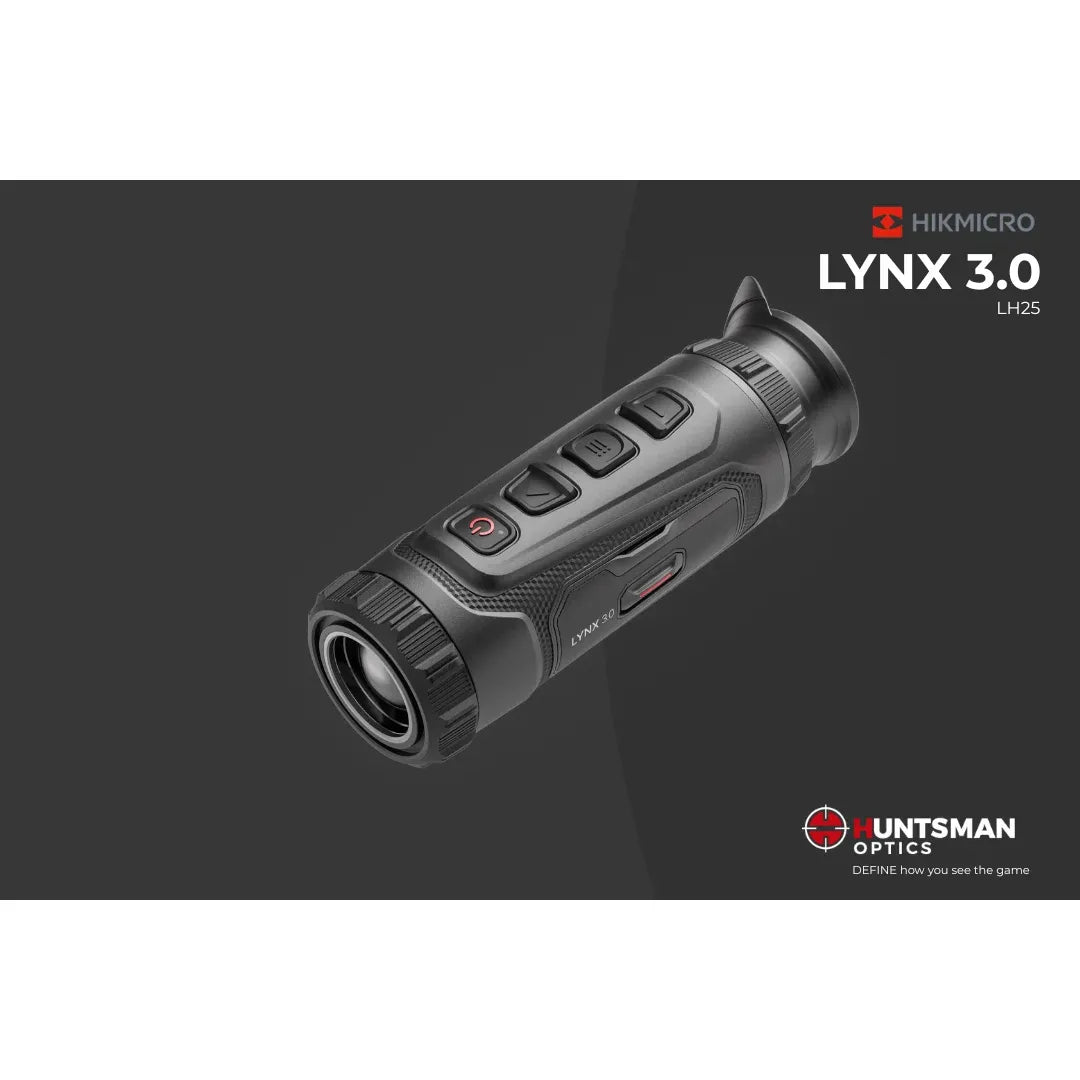

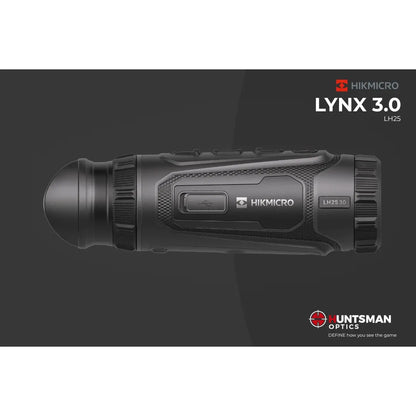

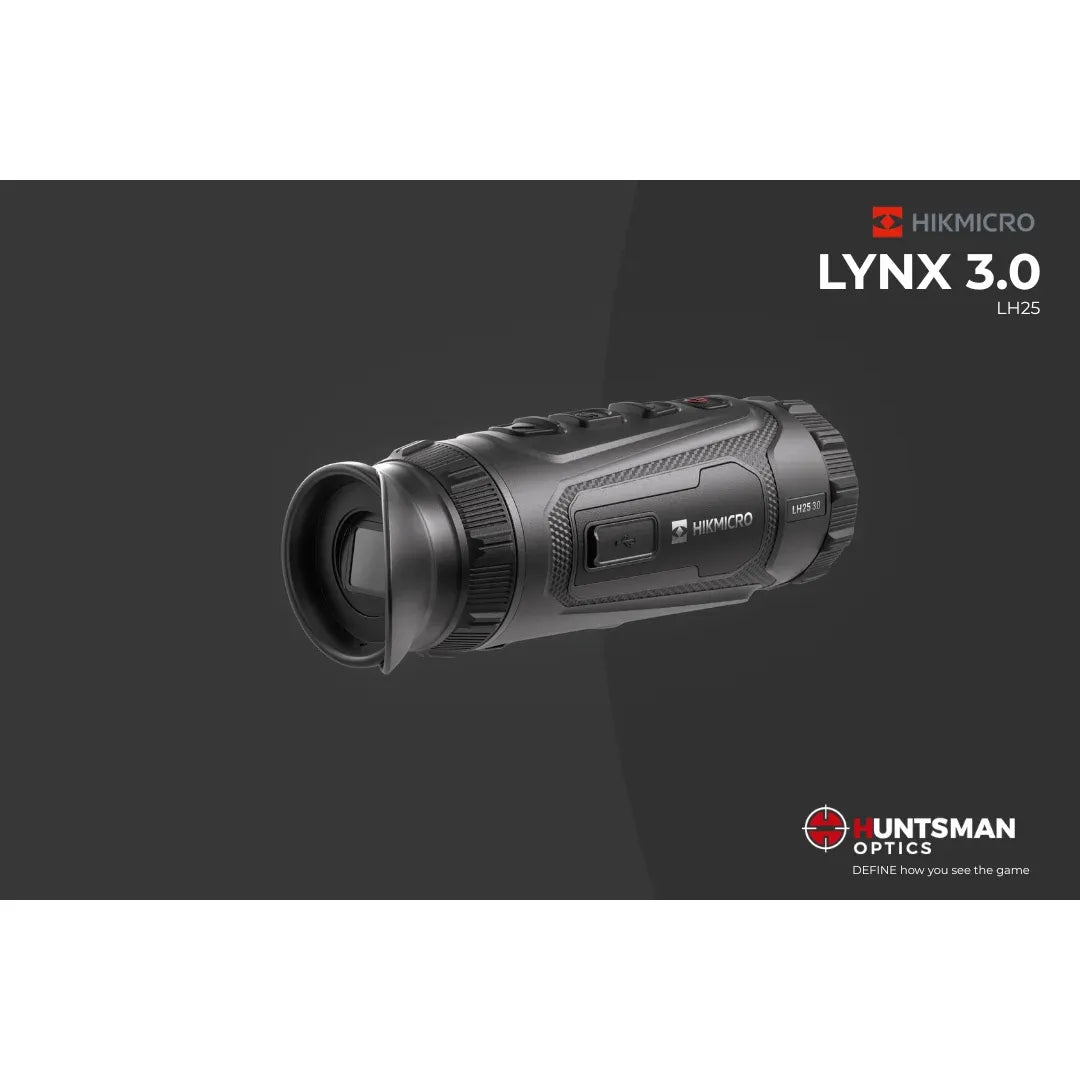

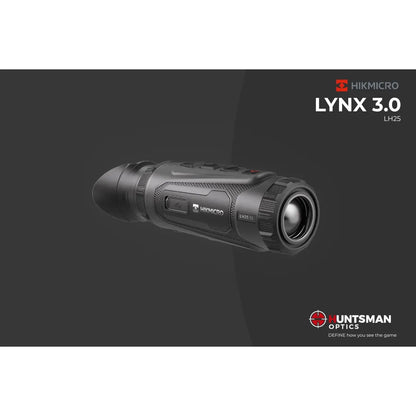

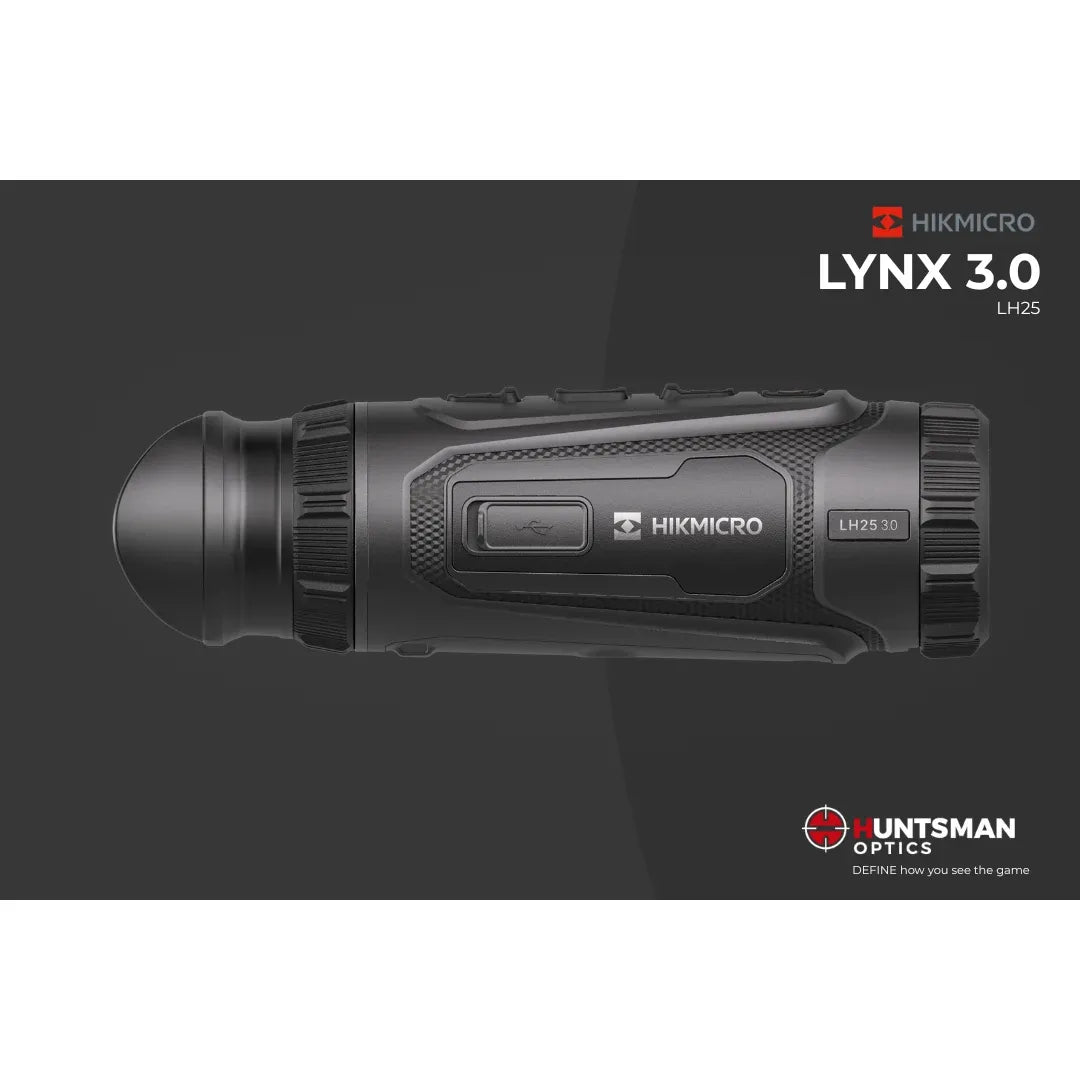

LYNX LH25 3.0 25mm Thermal Monocular
The HIKMICRO LYNX 3.0 LH25 is designed for users who need maximum detection range in a pocket-sized package. Featuring a high-sensitivity 384 × 288 thermal detector and a powerful 25 mm F1.0 lens, it offers a 2.5× base magnification and a focused 10.5° field of view. This optical configuration extends the detection range to an impressive 1200 metres, making it the ideal choice for scanning open landscapes, fields, and hillsides where distance is key.
Like the LH19, it is powered by AI-driven Image Pro 3.0 and Zoom Pro algorithms and boasts an ultra-sensitive NETD < 15 mK sensor. This ensures that even at long distances, you can distinguish minute details—like the difference between a deer and a wild boar—even in difficult weather conditions. It features a Manual Focus Ring for precise adjustments from 3 metres out to infinity, and the image is displayed on a stunningly large 0.49-inch 1920×1080 AMOLED screen.
Despite its powerful optics, the LH25 remains highly portable. It is powered by a replaceable 18650 battery with up to 5 hours of runtime and weighs just 328.5 grams. With the silent HIKMICRO Shutterless Image System (HSIS) eliminating calibration freeze, the LH25 offers professional-grade long-range performance in a device that fits in the palm of your hand.
HIKMICRO LYNX LH25 3.0 Specifications
-
Image Sensor: VOx Uncooled Focal Plane Arrays
-
Max. Resolution: 384 × 288
-
Frame Rate: 50 Hz
-
Pixel Interval: 12 μm
-
Response Waveband: 8 μm to 14 μm
-
NETD: Less than 15 mK (@25°C), F#=1.0
-
Lens (Focal Length): 25 mm, F1.0
-
Focus Mode: Focus Ring (Manual Focus)
-
Min. Focusing Distance: 3.0 m
-
Magnification: 2.5× – 20.0× (8× Digital Zoom)
-
Field of View (H × V): 10.5° × 6.4° / 18.4 m × 11.2 m @ 100 m
-
Detection Range: 1200 m
-
Display: 0.49 inch, AMOLED, 1920 × 1080
-
Contrast Adjustment: Yes
-
Brightness Adjustment: Yes
-
Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
-
Tone Adjustment: Cold, Warm
-
Zoom Pro: Yes
-
HSIS (HIKMICRO Shutterless Image System): Yes
-
Image Pro 3.0: Yes
-
Battery Type: Replaceable and rechargeable 18650 battery
-
Runtime: ~5 hours (@25°C) / 4.5 hours (@-20°C)
-
Protection Level: IP67
-
Weight: 328.5 g (with battery)
