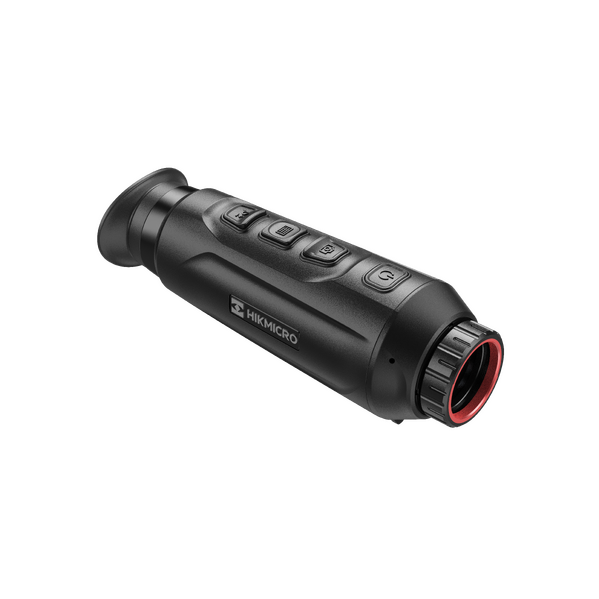

HUNTSMAN HIKMICRO LH25 V2.0 LYNX PRO THERMAL IMAGER MONOCULAR

Southern Wild

26671

| /


Equipped with a powerful 25mm lens and an advanced 384px 12μm NETD < 20mK sensor, the HIKMCRO LYNX LH25 2.0 captures highly detailed images at short and medium distances. With its exceptional capabilities, it effectively detects game at distances of up to 1200 meters.

HUGE DETECTION DISTANCE
With an 1200 meter detection distance, the LH25 will allow you to spot targets quickly and move into position even in the most adverse conditions.

REMOVABLE BATTERY
The Lynx Pro LH25 now comes with a removable 18650 battery that allows for longer battery life and longevity of the unit.

Thermal Module



Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 384 × 288
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 20 mK (@25°C), F# = 1.0
Lens (Focal Length) 25 mm, f1.0
Focus Mode Focus Ring
Detection Range 1200 m
Min. Focusing Distance 2.5 m
Magnification 2.4x to 19.2x (8x)
Field of View(H × V), Degrees / m @100m      10.5° × 7.9°/ 18.4 m×13.8 m
Image Display
Display 1024 × 768, 0.39 inch, OLED
Palettes Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode Auto, Manual, External Correction
Exit Pupil 6 mm
Eye Relief 20 mm
Diopter (Range) -5 D to +3 D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Contrast Adjustment Yes
System
Record Video Yes
Capture Snapshot Yes
Audio Recording Yes
Standby Mode Yes
Storage Built-in EMMC (16 GB)
PIP Yes
Hotspot Yes
Hot Track Yes
Distance Measurement      Yes
Power Supply
Battery Type Replaceable and Rechargeable Li-ion Battery
Battery Operating Time 6.5-hour continuous running with CVBS and hotspot function off (@25°C)
Type-C Power Supply 5VDC, 2 A
  Supports External Power Supply
General
Protection Level IP67
Dimension 172.5 mm × 56.0 mm× 60.8 mm



Weight 277 g without battery
Working Temperature      -30°C to +55°C
